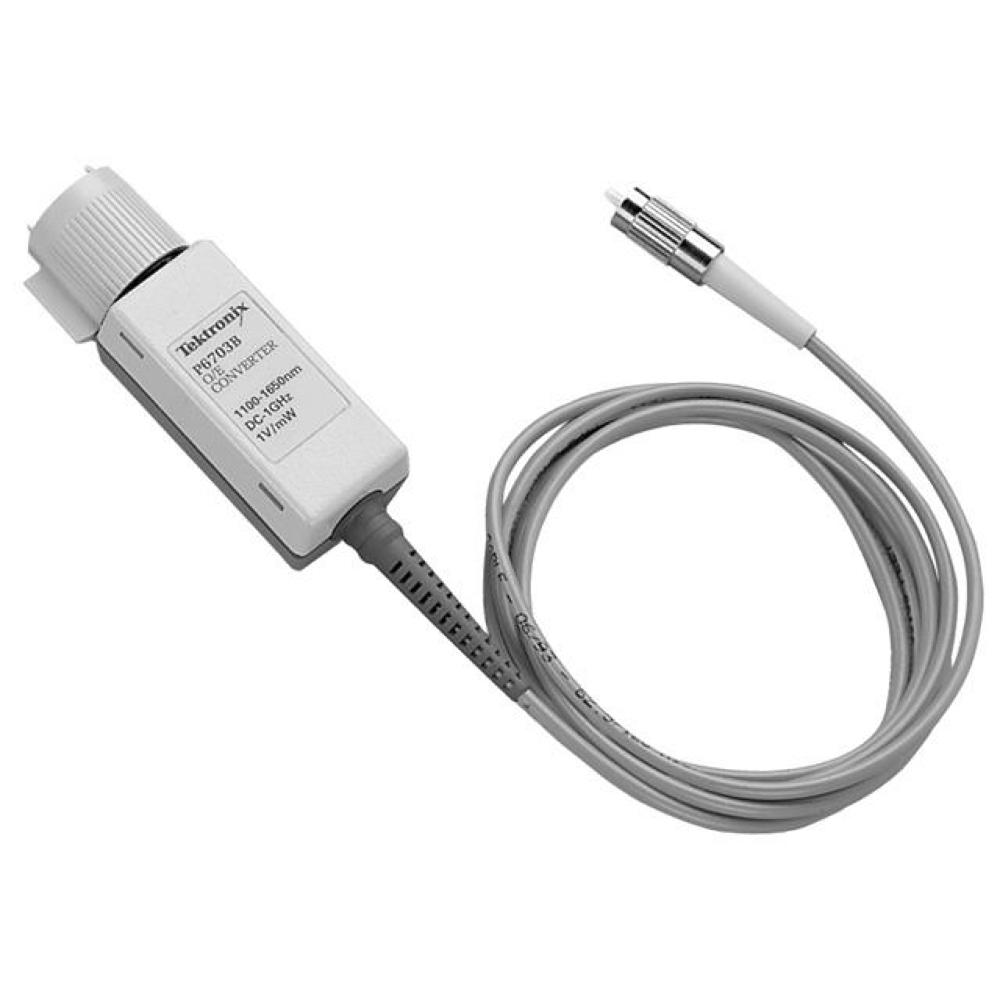

Tektronix 光プローブ - 低帯域
Features and benefits
- Broad Wavelength Response 500 to 950 nm or 1100 to 1700 nm
- High-bandwidth DC up to 1.2 GHz
- High Gain 1 V/mW
- Low Noise <11 pW/√Hz
- Probe Connects to DPO7000 *1 and DPO/MSO70000 *2 Series
- SONET/SDH and Fibre Channel Reference Receiver Performance:
・ TDS500C/700C (Opt. 3C or 4C)
・ P6701B – Fibre Channel up to 1063 Mb/s
・ P6703B – SONET/SDH up to 622 Mb/s
*1 Requires the TPA-to-BNC adapter
*2 Requires the TCA-to-BNC adapter
Applications
Product description
The Tektronix P6700 Series optical-to-electrical (O/E) converters change optical signals into electrical signals for convenient analysis on Tektronix DPO7000 and DPO/MSO70000 Series oscilloscopes with appropriate adapters (see footnote 1 and 2), any other Tektronix oscilloscope equipped with a TekProbe interface, or when used with the 1103 TekProbe power supply. The P6700 Series O/E converters are ideal for optical source characterization in the development, manufacture, or service of optical communication systems and devices.
Small, conveniently packaged P6701B and P6703B optical-to-electrical analog converters provide an accurate interface for optical pulse shape measurements. The high gain, large dynamic range, and stable output offset of these O/E converters make them ideal for performing eye pattern analysis and extinction measurements.
The P6701B/P6703B optical input is a 1 meter, 62.5µ Multi Mode fiber with an FC/PC connector. Using the standard assortment of hybrid fiber-optic mating sleeves, these O/Es can accommodate the various industry connector standards.
The P6701B/P6703B optical input is a 1 meter, 62.5µ Multi Mode fiber with an FC/PC connector. Using the standard assortment of hybrid fiber-optic mating sleeves, these O/Es can accommodate the various industry connector standards.
Performance you can count on
Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
The standard P6701B has a nominal frequency response which follows the fourth-order Bessel-Thompson for Fibre Channel 1063 Mb/s. The 1103 TekProbe power supply can be used to connect these products to the DSA8300 Series sampling oscilloscopes.
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Probe overview
| Characteristic | P6701B | P6703B |
|---|---|---|
| Wavelength response | 500 to 950 nm | 1100 to 1650 nm |
| Bandwidth *1 (Typical) | DC to 1.0 GHz | DC to 1.2 GHz |
| Rise time (Typical) | ≤ 500 ps | ≤ 395 ps |
| Conversion gain | 1 V/mW | 1 V/mW |
| Maximum input optical power | 1 mW (0 dBm) *2 | 1 mW (0 dBm) *2 |
| 10 mW (10 dBm) *3 | 10 mW (10 dBm) *3 | |
| 20 mW (13 dBm) *4 | 20 mW (13 dBm) *4 | |
| Maximum output modulation depth for reference receiver performance | ≤ 200 mVp-p | ≤ 200 mVp-p |
| Noise equivalent power | ≤ 0.87 Noise Equivalent Power µW (RMS) *5 | ≤ 0.59 µW (RMS) *5 |
| ≤ 28 pW per √Hz | ≤19 pW per √Hz | |
| Maximum input fiber core diameter | 62.5 µm | 62.5 µm |
*1 Optical bandwidth (-6 dB electrical)
*2 Maximum average operating power
*3 Maximum average nondestruct
*4 Maximum peak nondestruct
*5 1GHz low-pass filter in series with the output
商品仕様
| 製品名: | P6701B |
|---|---|
| 型番: | P6701B |
| メーカー: | テクトロニクス |
